Single phase flexibility

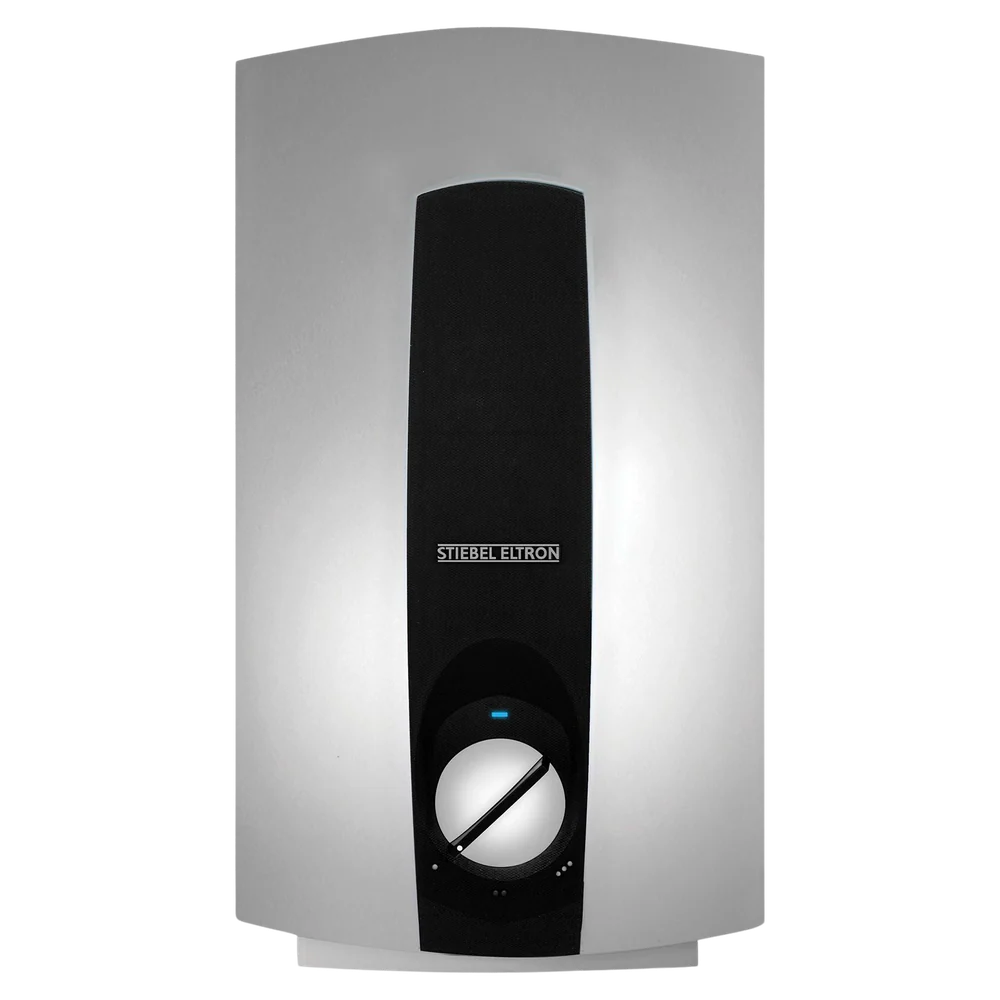

The electronically controlled DHCE single phase instantaneous water heaters from STIEBEL ELTRON. These single phase instant hot water systems are ideal for low flow installations as the water heater has a switch on flow rate at only 1.5 litres per minute. With installation flexibility in mind, the DHCE hot water system is compact in design and ideal for those applications where space is tight.

Product Features:

• Ideal for low flow applications with a switch-on flow rate of only 1.5 L/min
• Three selectable temperatures for greater convenience
• For use at one or several draw off points

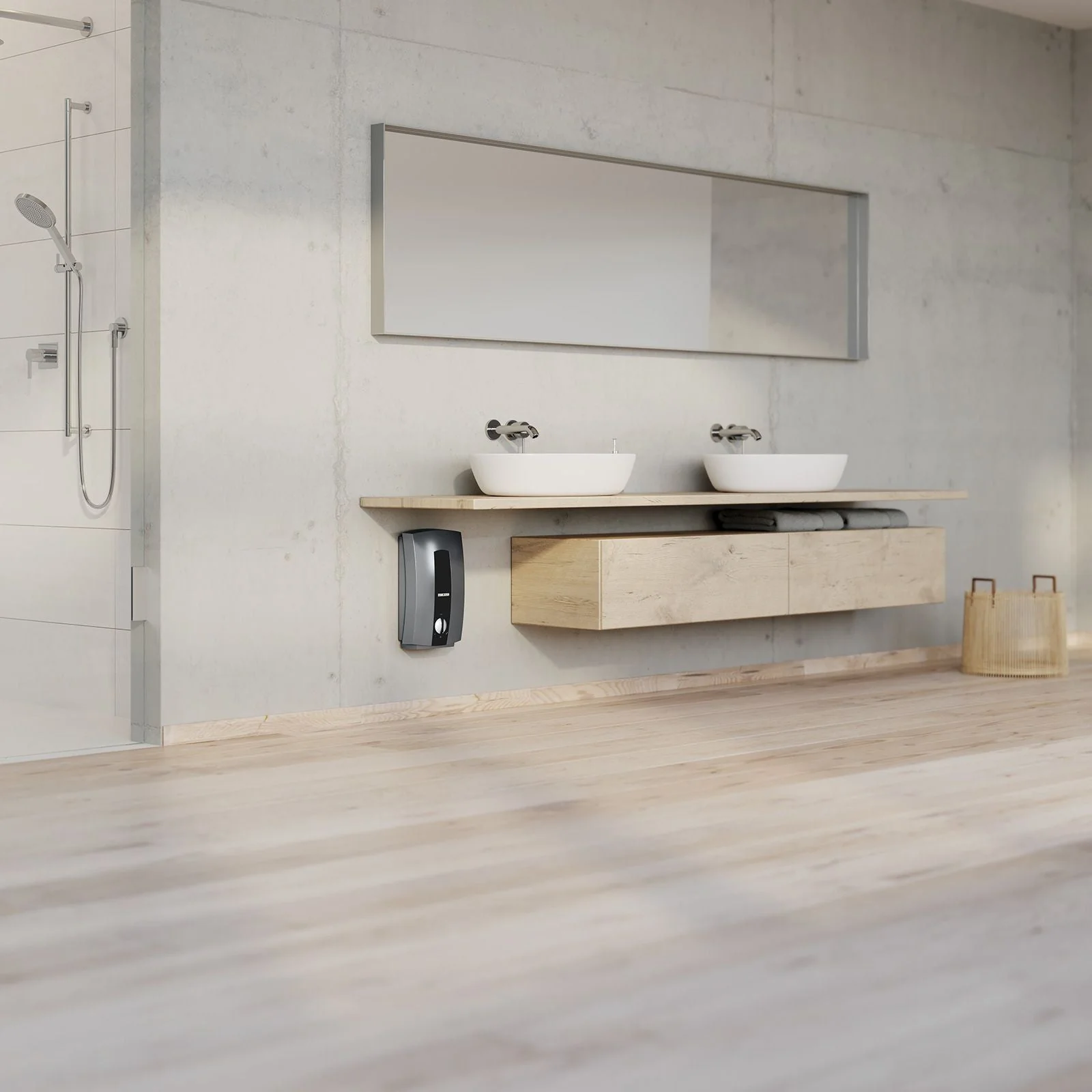

• Compact design for flexible installation
• No safe tray, flue or ventilation required

Modern design

• Modern carbon look design
• Electronically controlled
• Three selectable temperature outputs for greater convenience
• Tubular heating element
• WaterMark approved, Lic. No. WMKA21273, AS3498

Installation flexibility

• Delivers a maximum of 50°C hot water in accordance with AS3498
• No safe tray or drainage required (check local regulations)
• Space saving compact design

Save water and energy

The DHCE compact water heater utilises electronic control that helps to save energy and water compared to older style hydraulically controlled instantaneous water heaters.

In addition, the compact design allows for close to the point of use installation to help save water by reducing the time it takes to deliver hot water to the outlet. The advantage of an instantaneous water heater is that no heat is lost, and energy wasted, to store hot water at temperature. Energy is only required to heat water when the hot water outlet is switched on.

Available in two electrical sizes:

• DHCE 6/50 - 7.1kW, 30 Amps, single phase 240V
• DHCE 8/50 - 9.5kW, 40 Amps, single phase 240V

Warranty

• 5-year full parts and labour domestic warranty*

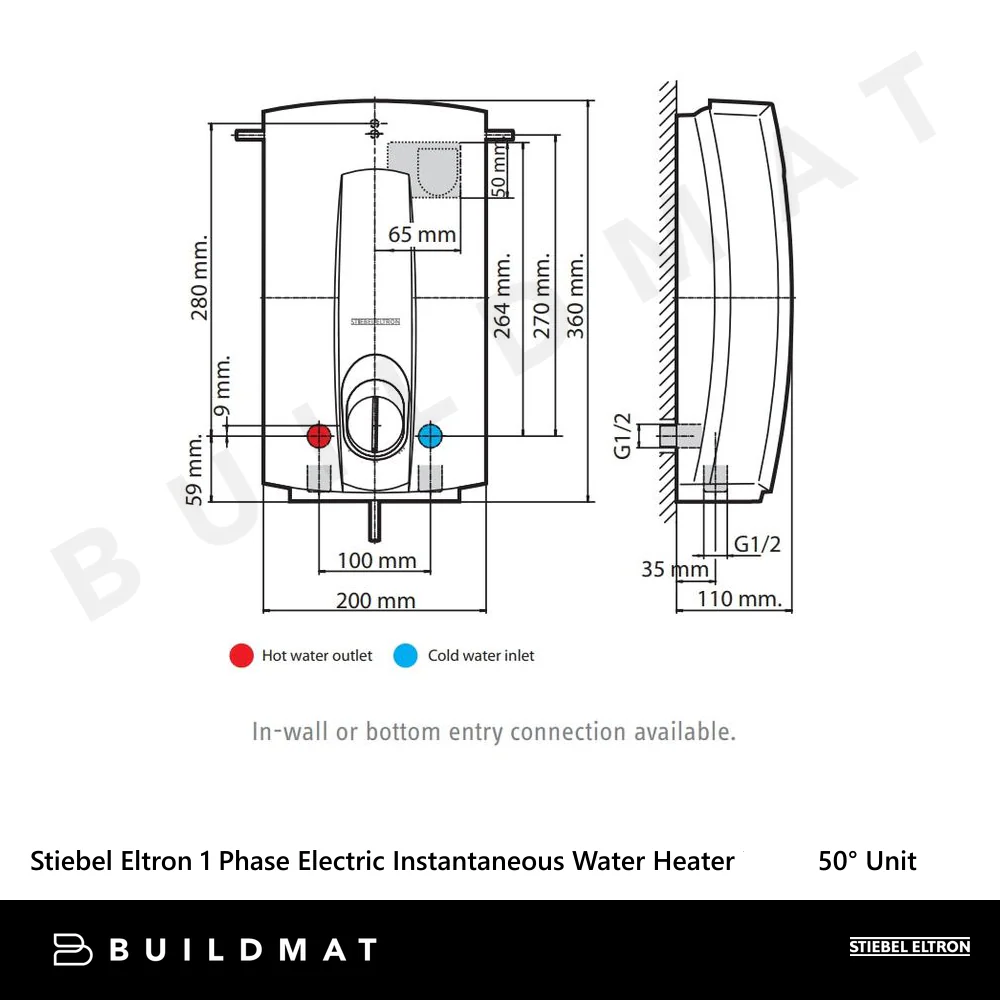

Technical Data

• Height: 360mm
• Width: 200mm
• Depth: 110mm
• Weight (filled with water): 2.45kg
• Colour: Silver look
• Nominal capacity: 0.45L
• Approvals: WaterMark Lic No. WMKA21273, AS3498
• For one/several draw off points: Yes/Yes
• Heating system: Tubular
• Electronic flow rate control: No
• Electronic air detection system: No
• Programmable temperature: No

• Model number: DHCE 8/50
• Rated output (240V): 9.5kW
• Rated current (240V): 40Amp
• Phases: 1/N/PE/AC 220..240V
• Electrical Installation: As per AS/NZS3000
• Installation requirements: AS/NZS3500.4.2 & local requirements
• Switch on flow rate: 1.5L/min
• Permissible operating pressure: 1000kPa
• Temperature adjustment: 40°C 45°C 50°C
• IP Rating: IP25
