Stiebel Eltron 10 Litre Under Sink Open Vented Storage Tank
A compact, easy-to-install water heater perfect for kitchens with frequent, small-scale hot water needs. Its anti-drip feature ensures a limescale-free experience on taps and sinks, combining efficiency and convenience in one sleek package
Product features
- Made in Germany
- Designed for single isolated sink
- Energy and water savings
- Low minimum standby power consumption
- To be fitted with specialised open vented tapware
The SNU Plus under sink point of use water heater is open vented and must be installed with a STIEBEL ELTRON open vented tap. Not suitable for installation at a basin as a tempering valve or TMV cannot be fitted with this water heater
Application
These compact and stylish small water heaters are ideal for providing hot water to individual fixtures, such as a kitchen sink. These non-pressurised units deliver instant hot water and are compatible only with non-pressurised taps.
Convenience Features
The sleek casing features a stylish surface texture. The high-quality haptic rotary selector allows for precise temperature control. Reduced limescale deposits and water consumption thanks to anti-drip function on the 5 litre undersink appliance prevents expansion water dripping during heat-up. The water-immersed sensor ensures fast and accurate temperature detection. A four-stage temperature limit setting provides flexibility. When the appliance is turned off, an automatic frost protection feature activates. A visual indicator shows when the small water heater is in operation.
Efficiency
High-grade EPS thermal insulation surrounding the polypropylene inner cylinder minimises energy losses. The energy-saving thermostop function prevents unnecessary heating of the tap. Standby energy consumption is exceptionally low.
Installation
The Profi-Rapid installation system facilitates quick and easy installation. The compact design aligns with standard mounting points, enabling swift replacement of existing appliances. Straightforward wall mounting is accomplished using a universal mounting rail. Metal threaded water fittings enhance safety. The power cable with a standard plug features a cable storage compartment at the back of the appliance to accommodate excess cable. The unit is splashproof.
Safety
The copper tubular heater is durable and has a long lifespan. It has a resettable high limit safety cut-out for safe commissioning and mechanical temperature limit for anti-scalding protection.
Technical Data
- Rated output (240V): 2.2kW
- Rated current (240V): 9.1Amp
- Phases: 1/N/PE
- Electrical Installation: As per AS/NZS3000
- Installation requirements: AS/NZS3500.4.2 & local requirements
- Type of installation: Under sink
- Max. tapware permissible pressure: 500 kPa
- Temperature setting range: 35 - 85°C
- Tank capacity: 10 Litres
- Mixed water volume at 40°C from single draw off: 19 Litres
- Standby energy consumption / 24 hours at 65°C: 0.31kWh
- IP Rating: IP24

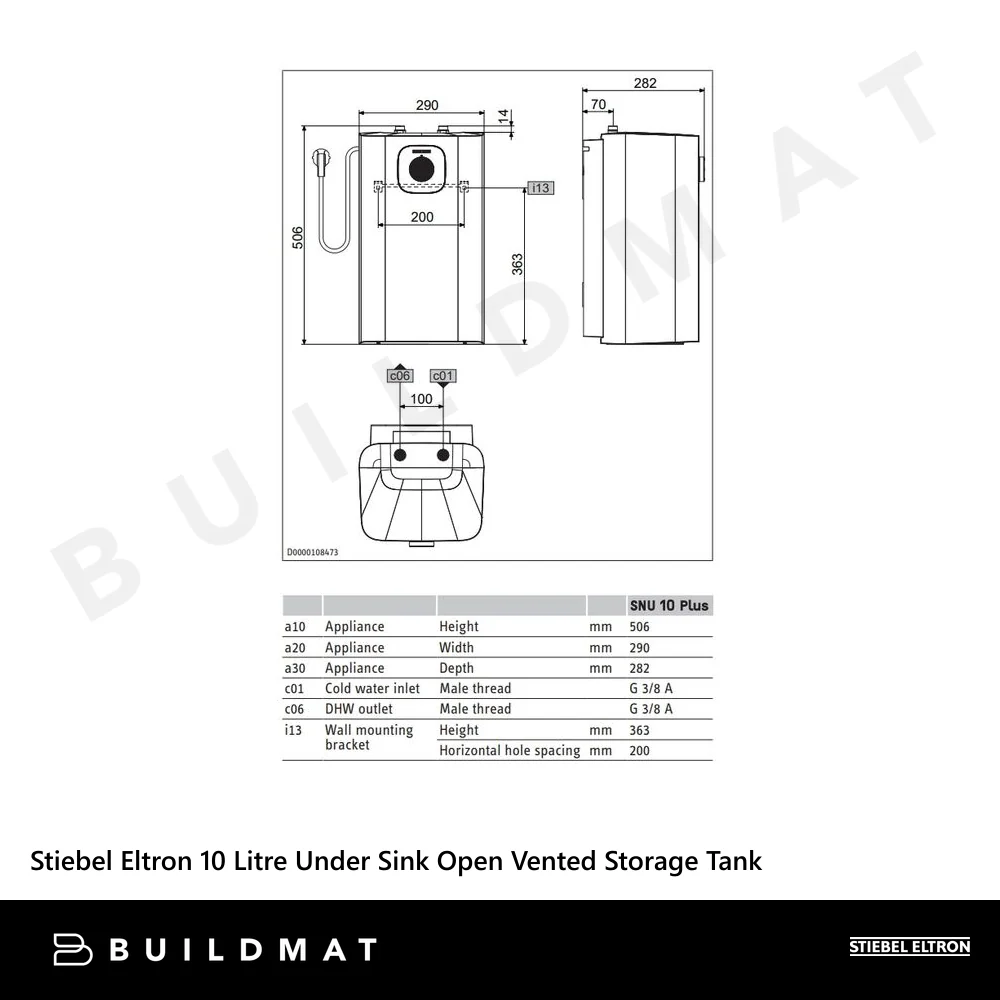

- Height: 503mm
- Width: 290mm
- Depth: 282mm
- Weight: 4.2kg
- Colour: White
- Approvals: WaterMark Lic No. WMKA00301, AS3498
- For one draw off point: Yes
Please note: The SNU Plus under sink single point of use water heater is open vented and must be installed with a STIEBEL ELTRON open vented sink mixer.
