Affordable high quality comfort

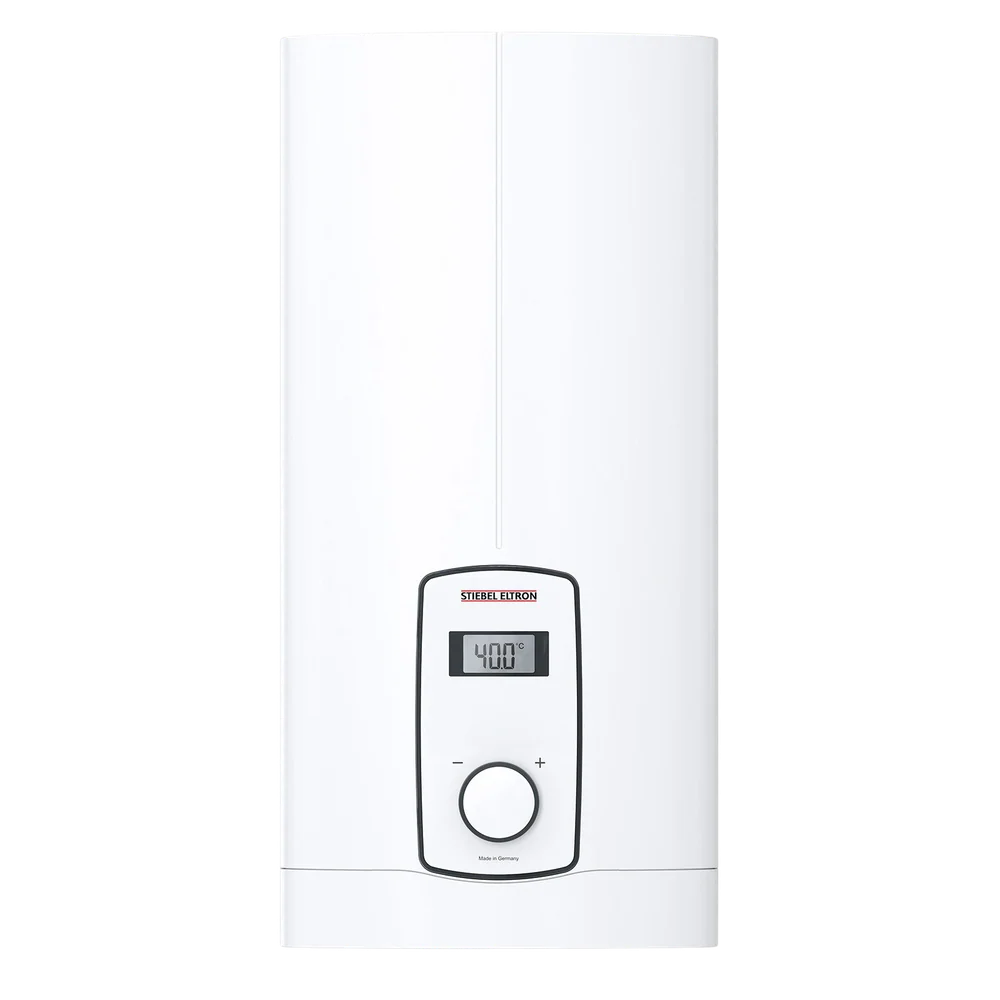

With the DHB-E LCD instantaneous water heater, accurate temperature settings are no longer a problem, thanks to the LCD display. This allows direct accurate temperature delivery selection between 20 and 60 °C. With 3i technology for high efficiency and output, the DHB-E LCD provides a reliable and constant supply of hot water

Product features

• Made in Germany
• LCD for temperature display
• Electronically controlled
• Simple temperature selection via rotary
• Selector in steps of 1 °C
• Suitable for hard and soft water areas
• No flue, ventilation or safe tray required
• Temperature set at 60°C
• Operates on 6.5 Amp 230V, plugs into power point

High quality engineering

• Made in Germany
• LCD Controller
• Bare wire element is suitable for hard and soft water areas
• WaterMark Lic No. WMKA00301, AS3498
• Electronically controlled

Flexible installation

• Space saving design
• No safe tray or ventilation required

Available in three electrical sizes:

• DHB-E 13 LCD - 14.5kW, 20.2 Amps per phase, three phase 415V
• DHB-E 18 LCD - 19.4kW, 27 Amps per phase, three phase 415V
• DHB-E 27 LCD - 28kW, 38.9 Amps per phase, three phase 415V

Warranty

• 7 Year full parts and labour domestic warranty*

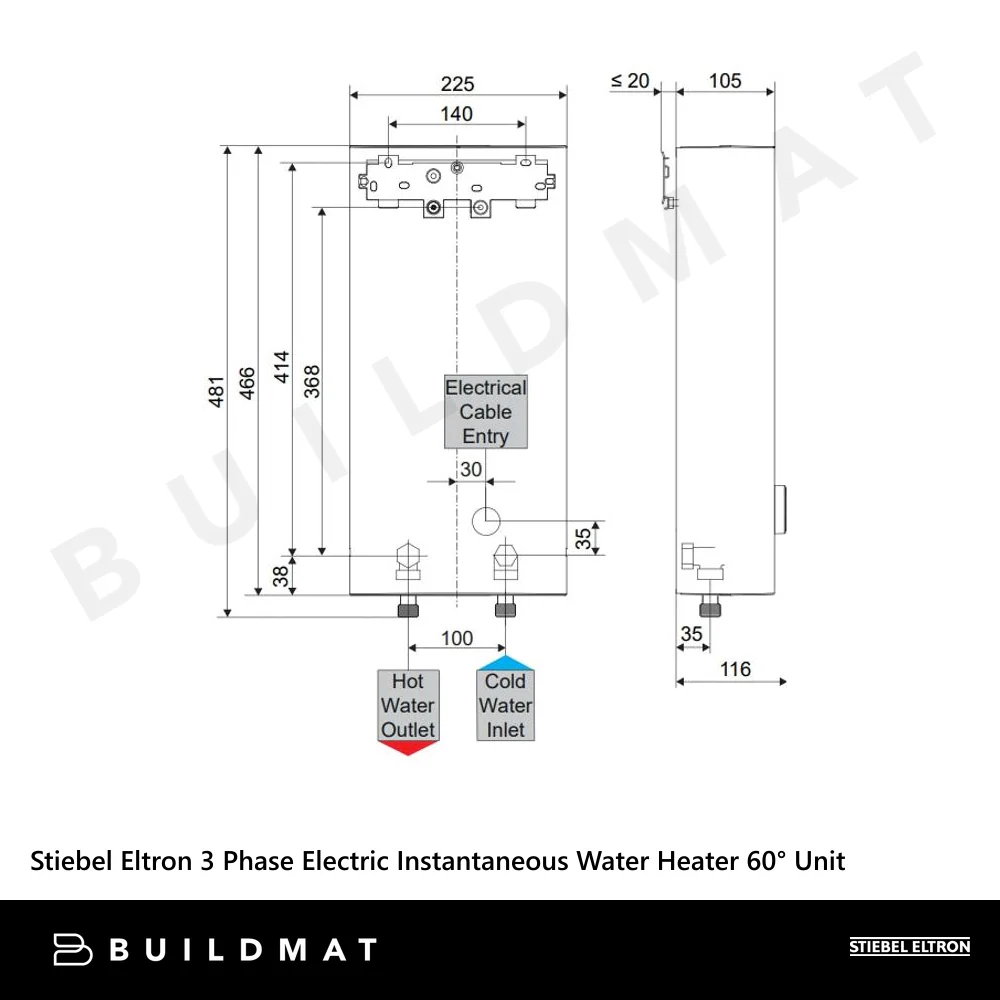

Technical Data

• Height: 466mm
• Width: 225mm
• Depth: 116mm
• Weight: 2.9kg
• Colour: white
• Nominal capacity: 0.4L
• Approvals: WaterMark Lic No. WMKA00301, AS3498
• For one/several draw off points: Yes/Yes
• Heating system: Bare wire
• Programmable temperature: No
• Accepts pre-heated water (solar): Yes (incoming hot water must not exceed 55°C)

• Rated output (415V): 14.5kW
• Rated current (415V): 20 Amp
• Phases: 3/PE
• Electrical Installation: As per AS/NZS3000
• Installation requirements: AS/NZS3500.4.2 & local requirements
• Switch on flow rate (minimum flow rate required to switch on the water heater): 2.5L/min
• Max. permissible pressure: 1 MPa
• Temperature adjustment: 20-60°C
• IP Rating: IP25 (IP24 at electrical connection finished walls)
